GM3015AH 3 Axis CNC Sandwich Panel Cutting Machine for Truck Body Manufacturing

Video Show of Sandwich Panel CNC Cutting Machine for Truck Body Manufacturing:

Features of Sandwich Panel CNC Cutting Machine for Truck Body Manufacturing:

1. The machine body adopts thick-walled sqaure tube welding technology, all weld has passed strict inspection to eliminate the hidden dangers of false welding and welding leakage. To ensures long-term stable operation of the entire machine, effectively reducing precision lost and extending the machine’s lifetime.

2.XYZ axes are equipped with high-speed rack and pinion transmission and Z axis is equipped a high-precision ball screw, this design could ensures precise positioning while increasing machine move speed, balancing machining accuracy and production efficiency.

3. All XYZ axes  are equipped with Taiwan square rails, their excellent guiding performance effectively suppresses vibration during high-speed movement, ensuring smooth moving and guaranteeing high-quality machining surfaces.

4. High-efficiency power drive: The XYZ axes may be driven by high-speed linear motors, with a maximum rapid feed rate of 60m/min and a maximum acceleration of over 5m/sec². This direct power transmission and fast response speed can improve processing efficiency..

5. Key mechanical components use high-temperature tempering, which not only reduces material hardness but also completely eliminates th internal stress. This process highly improves component stability, ensuring the machine maintains high-precision over the long term.

6. All electrical parts are choose top brands and are designed and manufactured with CE standards, ensuring the safety, reliability, and compliance of the equipment’s electrical system from the beginning.

7. Before delivery, each machine will do a 24 hour continuous moveing test to fully verify operational stability and processing performance. Customers can begin production directly after receive the machine without any additional commissioning, to saving time.

8. The whole machine with 18 months warranty, and the Chencan team provides lifetime technical support. From installation to maintenance, we provide professional support throughout the entire process, eliminating any worries about production.

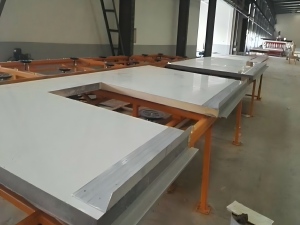

Sandwich Panel CNC Cutting Machine Industry & Materials:

Technical Parameters of Sandwich Panel CNC Cutting Machine for Truck Body Manufacturing:

Optional Configuration of Sandwich Panel CNC Cutting Machine for Truck Body Manufacturing:

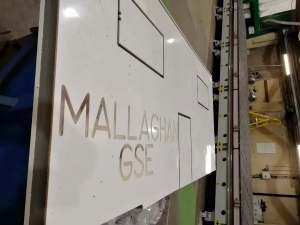

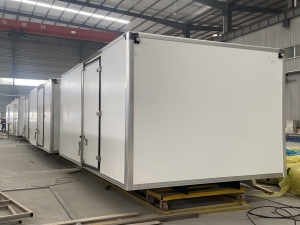

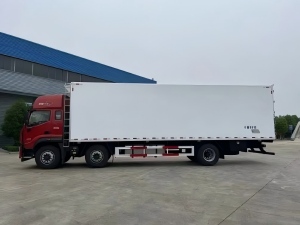

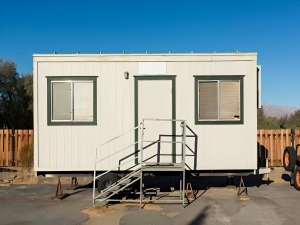

Sandwich Panel CNC Cutting Machine for Truck Body Manufacturing Project:

Sandwich Panel CNC Cutting Machine need regular maintenance is important to keep its accuracy and extend its lifetime.

1. Dust Cleaning: Daily clean the work table after one day work, keep the appearance of the surface of the sandwitch panel cutting machine and prevent dust and debris from entering the equipment.

2. Parts Maintenance: Regularly check the various parts of the surface of the sandwich panel cutting machine, including guide rails, transmission systems, spindles, collet, etc., to ensure that they operate normally, and find and solve problems in time.

3. Lubrication Maintenance: sandwich panel cutting machine adopt auto lubricate system, which will lubricate the various parts of the machine according to the requirements automatically, but need to check the oil level in pump regularly.

4. Temperature Control: Regularly check the working temperature of the sandwich panel cutting machine to avoid high temperature affecting the machine’s operation, and handle abnormal temperature problems in time.

5. Regular Calibration: Calibrate the machine regularly to ensure the processing accuracy and stability of the sandwich panel cutting machine.

6. Safety Protection: Ensure the safety protection around the machine are good to ensure the operator safety and avoid accidents.

7. Timely Maintenance: When machine collision or problems are found, please contact the professional maintenance personnel in time for repair to avoid the problem from affecting the normal use of the machine.

FAQ for Sandwich Panel CNC Cutting Machine:

Q1: What are the worktable options for the sandwich panel cnc cutting machine?

We could custom make the work table according to the customer’s panel size. Standard sizes include 3*7m, 3*10m, 3*12m, and 3*17m, meeting the specific panel processing requirements of different customers.

Q2: Can all composite panels be machined using standard routers?

A: No; some require hybrid systems integrating circular saws due to their layered structure complexity which risks delamination during routing alone.

Q3: What causes delamination during panel machining?

A: High vibration levels from improper feed rates/tool geometry often cause separation between composite layers under stress conditions.

Q4. What payment methods are supported?

We offer a variety of mainstream payment methods, which can be flexibly selected based on the cooperation practices of both parties, such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Alipay.

Q5. What trade methods are available?

We cover a variety of international trade terms to meet different logistics and liability requirements, such as FOB, CIF (Cost, Insurance, and Freight), FCA, and DDU. The final trade method can be determined through negotiation with us based on requirements such as cargo transportation arrangements and customs clearance responsibility division.

Q6. How purchase?

Pay a deposit to confirm the order first, then we will immediately begin production (the deposit amount is negotiable). Second, after production is complete and before shipment, the customer check the machine at our facotry. Then delivery will be arranged upon receipt of customer’s confirmation and balance payment. In the end, our engineers come to your factory to provide on-site installation and training.

Q7. What if cannot find a suitable machines?

Don’t hesitate to contact us, Chencan professional technical team will recommend you the right machine according to your processing requirements.
