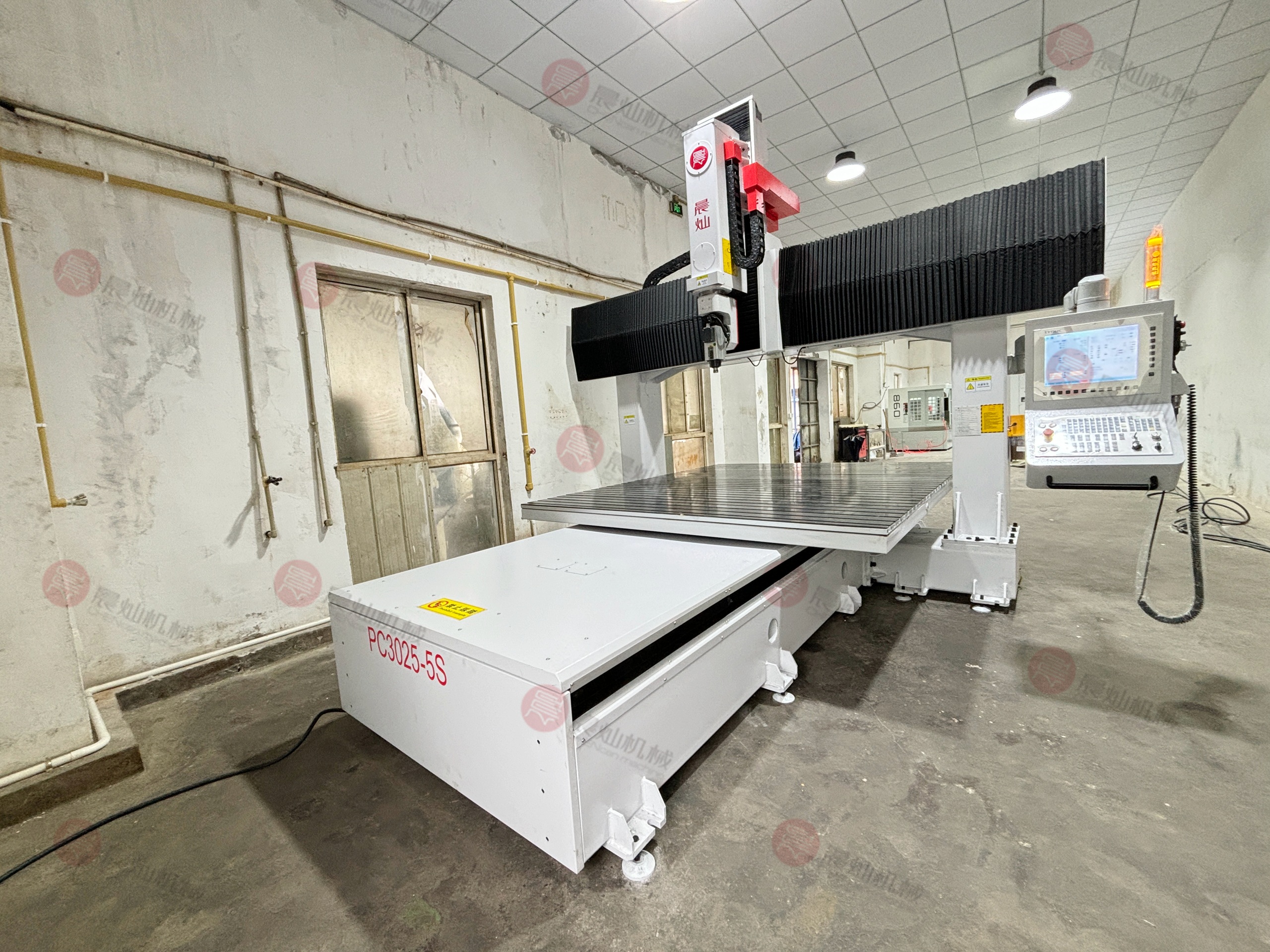

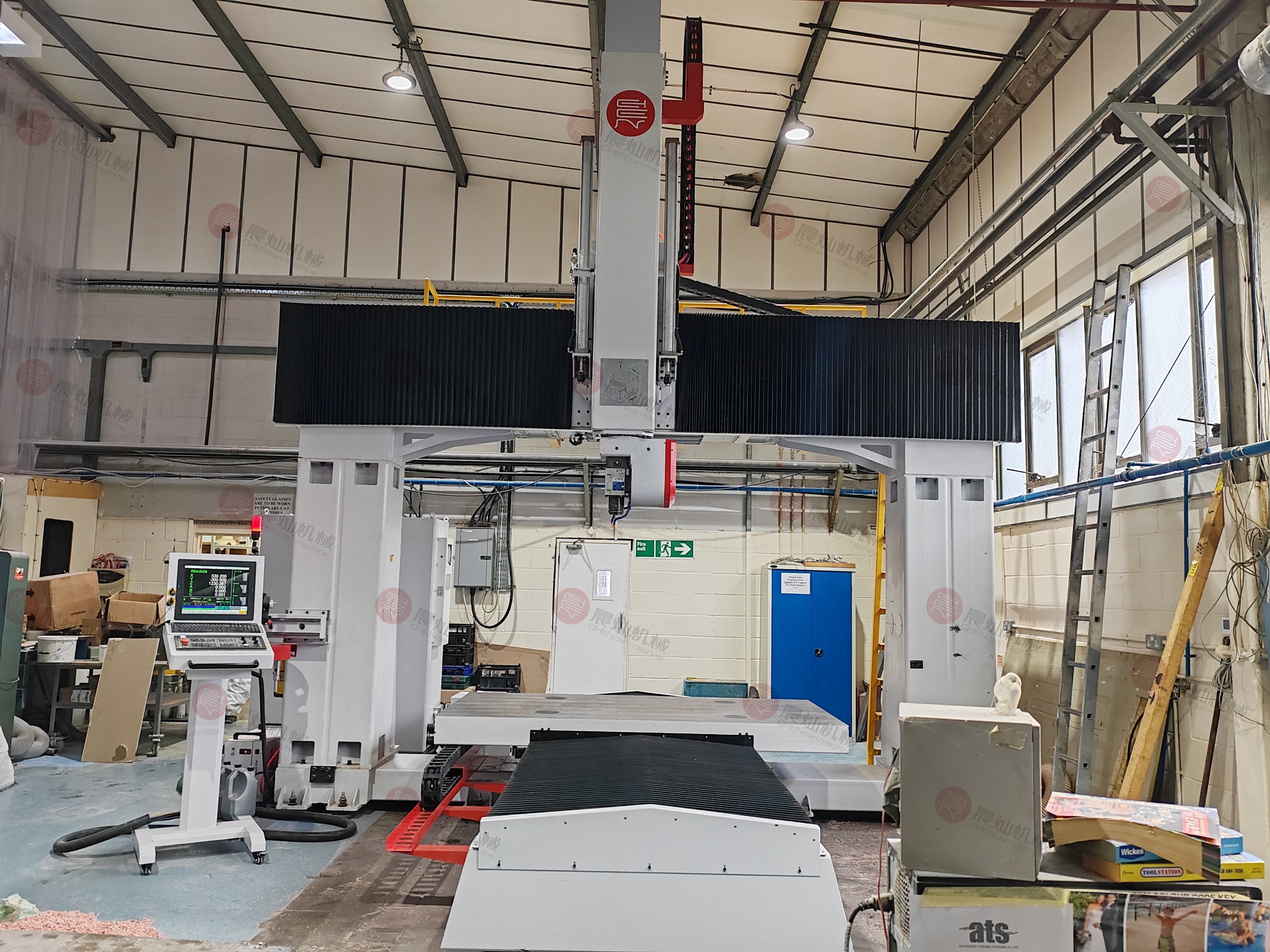

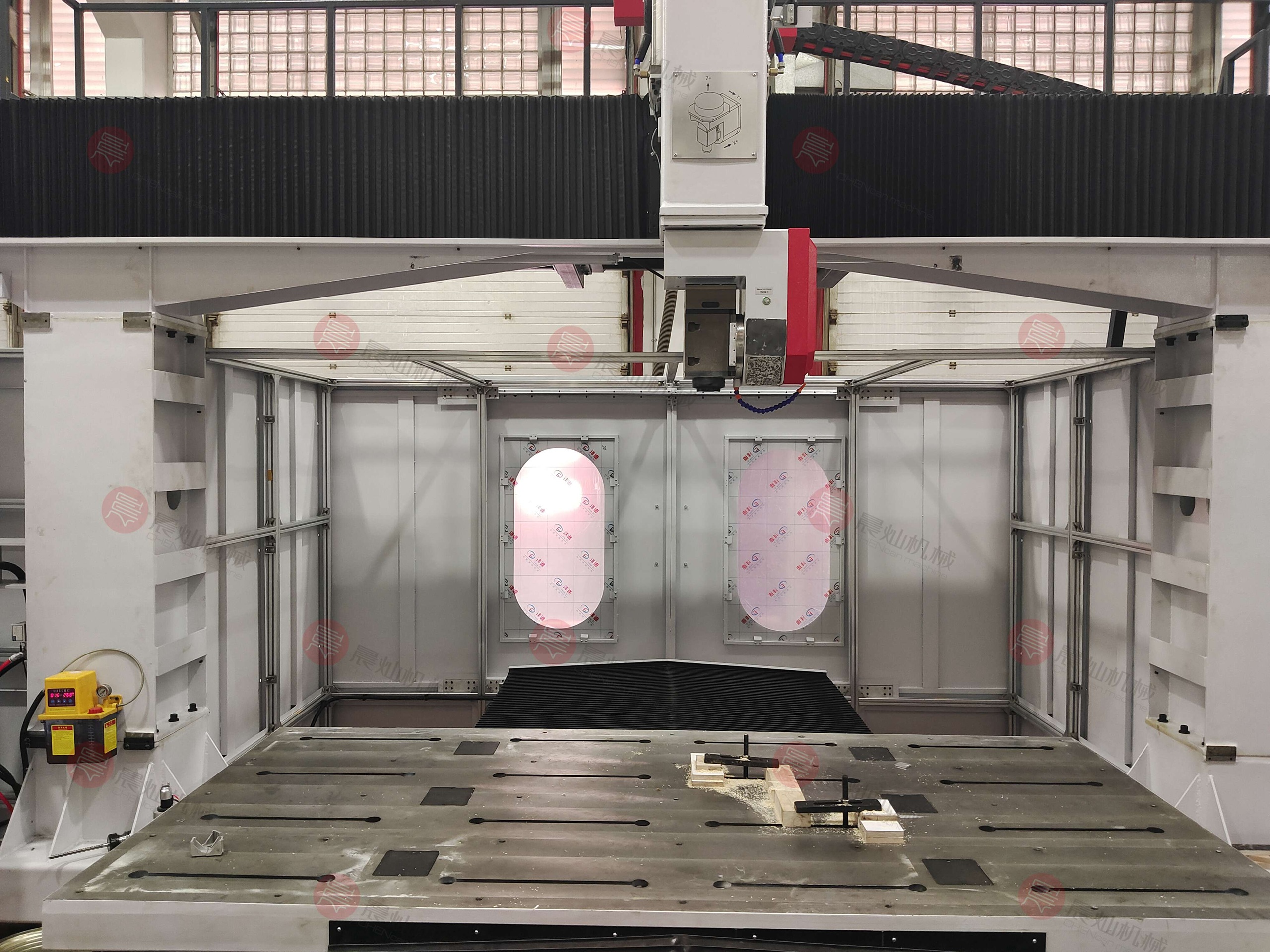

The 5-axis CNC Machine Center table is directly connected to the machine tool base guideways, offering enhanced structural stability. It can support heavier workpieces and features a more flexible stroke design, accommodating machining requirements for longer components.
Video Show of 5-axis CNC Machine Center For Wood Working
Core Advantages of 5-axis CNC Machine Center For Wood Working :
1. 5-axis Wood Pattems CNC Router of SF Table Move Series be specifically designed for 3D machining and holding tight tolerances, which can hold much tighter and more consistent tolerances than held by hand. Widely be used for pattern and mould manufacturing with high requirements on precision and high finish.
2. The SF Table Move Series cnc router with table move stucture and high accuracy ball screws for a good performance. It has the characteristics of small layout, high efficiency and high speed. Most economical for medium size, light weight workpieces.
3. CHENcan sefl-engineered 5 axis rotary head combines powerful troque with exceptional rotational speed. Utilizing imported reduction gears and air braking system, it maintains precision for extended operation.
5-axis CNC Machine Center For Wood Working Industry & Materials:
Technical Parameters of Mold and Sculpture Making:
| Stroke Size(mm) | X:3000 Y:2000 Z:1200 |
| 5 Axis Working Size(mm) | X:3000 Y:2000 Z:800 |
| Spindle | Italy HITECO 15Kw Spindle |
| Spindle Speed | 24000rpm/min |
| Spindle Cone | HSK 63F |
| A Axis | ±120° |
| C Axis | ±360° |
| Control CNC | HNC |
| Tool Change | 8 Positions |
| Drive Type | XYZ: High precision ball screws |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 40/40/10 |
| Max Rapid Speed X/Y/Z(m/min) | 60/60/20 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.04/0.04/0.04 |
| Repeatability X/Y/Z(mm/m) | 0.025/0.025/0.025 |
| Work Table type | Iron Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.08 |
| Total Power (KVA) | 38 |
| Gross Weight (T) | 12 |
Optional Configuration of Mold and Sculpture Making:
| Control CNC | Siemens, Syntec |
| Spindle | From 15kw up to 42kw, 24000rpm max. |
| Spindle Head | H Type-Double Shoulder Type |
| Work Table | Aluminum Table, Vacuum Table |
| Around Protection | Enclosure, Roof |
| Dust Suction System | Grids+hood |
| Vision Cameras | 2 cameras, 4 cameras |
| Tool Sensor | TSR27, NC4 |
| Probe | RMP600, RMP600 |

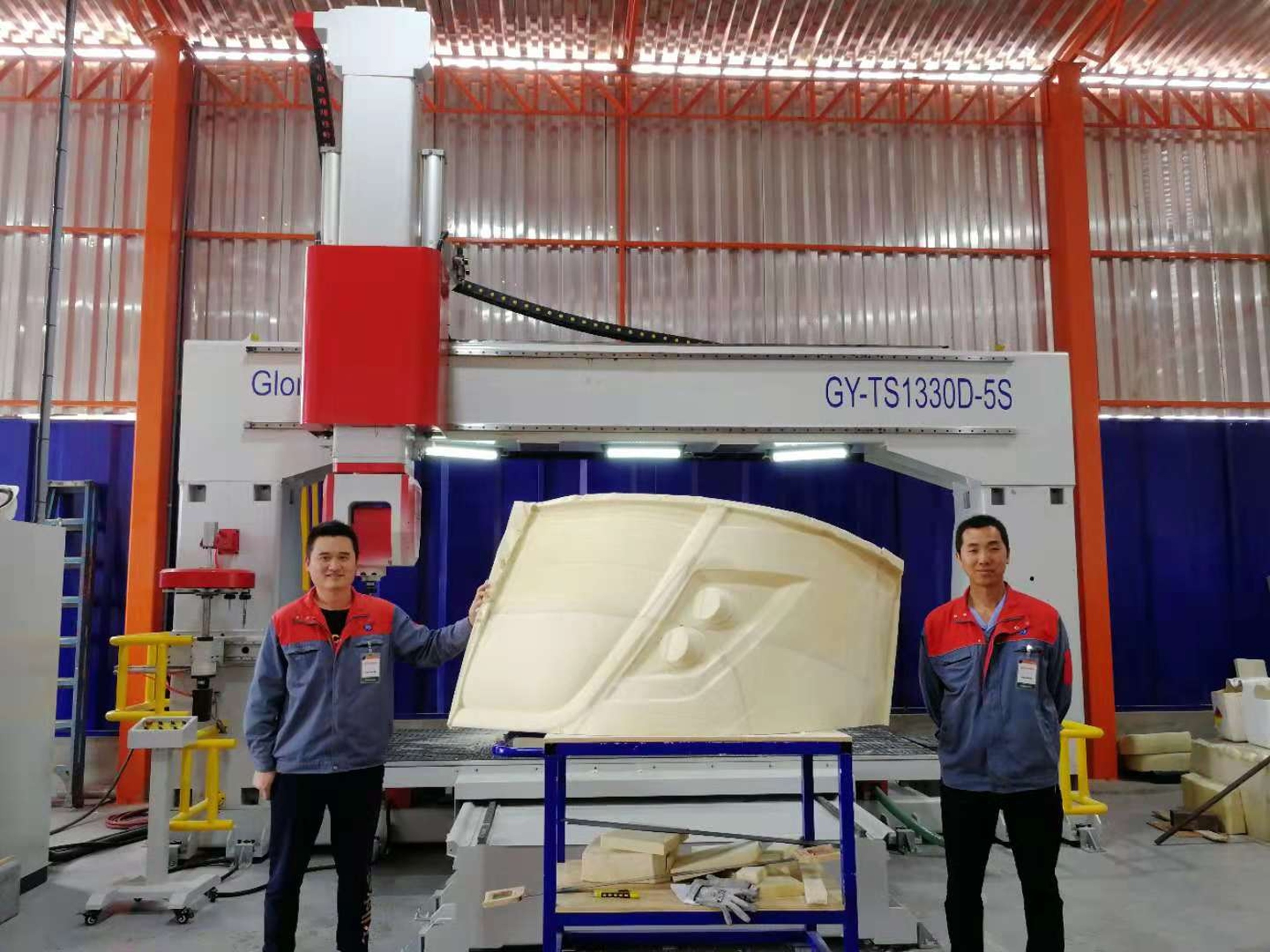

5-axis CNC Machine Center For Wood Working Project:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
The core of CNC machinery maintenance is “regular inspection, lubrication as needed, cleaning and dust prevention”, which can effectively extend the life of the equipment, avoid precision degradation and sudden failures.
1. Dust Cleaning: Daily clean the work table after one day work, keep the appearance of the surface of the axis 5 cnc router, and prevent dust and debris from entering the equipment.
2. Temperature Control: Regularly check the working temperature of the 5 axis cnc carving machine to avoid high temperature affecting the machine’s operation, and handle abnormal temperature problems in time.
3. Regular Calibration: Calibrate the machine regularly to ensure the processing accuracy and stability of the 5 axis gantry machine.
4. Safety Protection: Ensure the safety protection around the machine are good to ensure the operator safety and avoid accidents.
5. Follow the Instructions manual: Maintenance requirements for different brands and models of 5 axis cnc router. The included maintenance manual must be your primary guide.
6. No Illegal Operations: Do not clean the moving parts while the machine is running, and do not use water to clean the electrical parts of the equipment.
7. Record and Archive: Build a maintenance log, detailing the time, content, operator, and equipment status of each maintenance session to facilitate traceability and subsequent maintenance.
FAQ for 5-axis CNC Machine Center For Wood Working:
Q1. What payment methods are supported?
We offer a variety of mainstream payment methods, which can be flexibly selected based on the cooperation practices of both parties, such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Alipay.
Q2. What trade methods are available?
We cover a variety of international trade terms to meet different logistics and liability requirements, such as FOB, CIF (Cost, Insurance, and Freight), FCA, and DDU. The final trade method can be determined through negotiation with us based on requirements such as cargo transportation arrangements and customs clearance responsibility division.
Q3. What does the after-sales service include?
We provide full-cycle after-sales support to ensure the stable operation of the equipment. Each device with a unique ID to facilitate quick device backup information and improve after-sales response efficiency.
Q4. Do you provide on-site engineer service? How are the related expenses covered?
Yes, we support on-site engineer service. Engineers can come to your factory for installation guidance, commissioning, and training services. Customers only need to pay the engineer’s round-trip airfare and local accommodation expenses.
Q5. How purchase?
Pay a deposit to confirm the order first, then we will immediately begin production (the deposit amount is negotiable). Second, after production is complete and before shipment, the customer check the machine at our facotry. Then delivery will be arranged upon receipt of customer’s confirmation and balance payment. In the end, our engineers come to your factory to provide on-site installation and training.
Q6. What if cannot find a suitable machines?
Don’t hesitate to contact us, Chencan professional technical team will recommend you the right machine according to your processing requirements.
