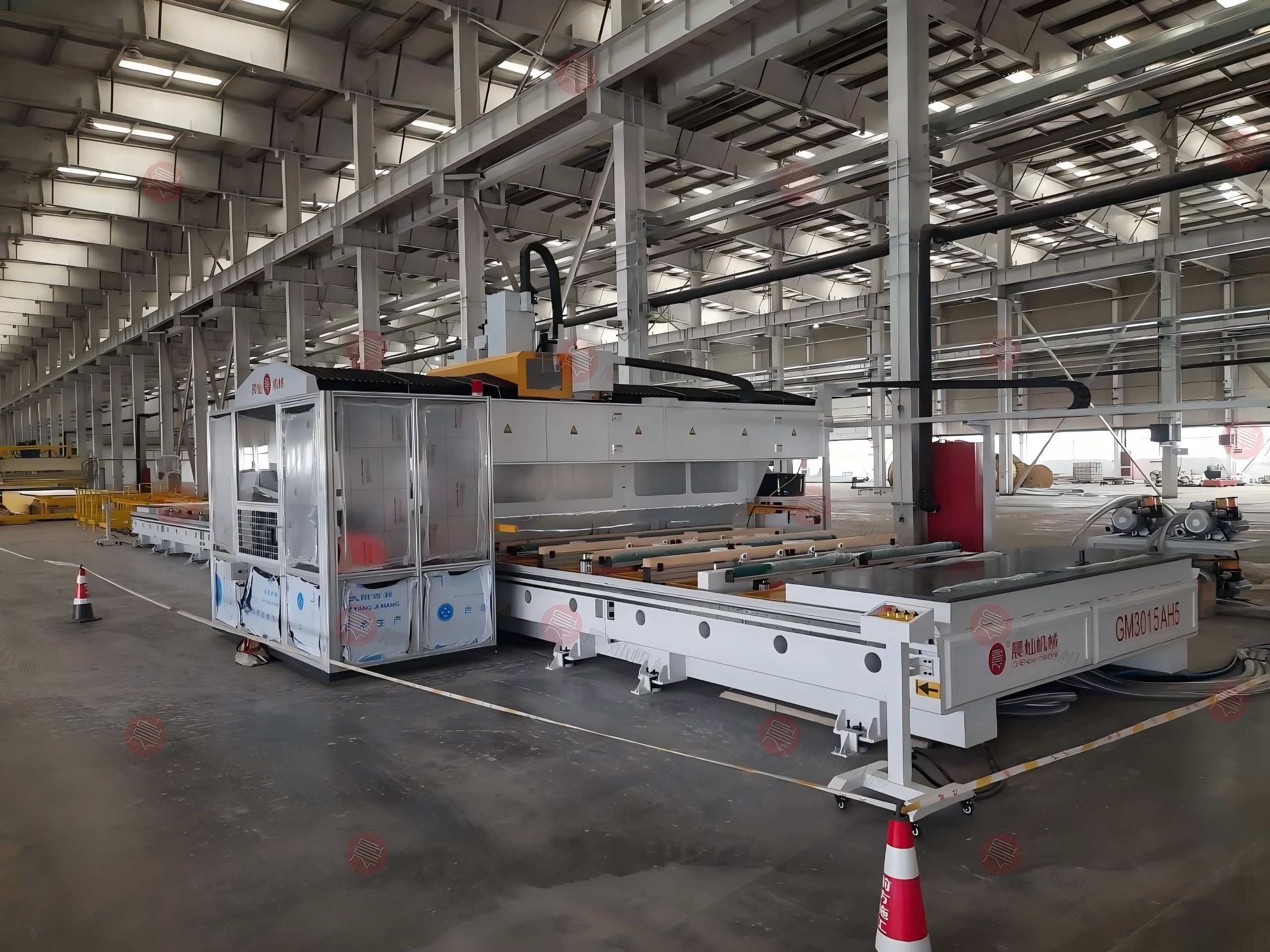

Features of Composite Board Processing Center for Camping Car Making :
1. The machine body adopts thick-walled sqaure tube welding technology, all weld has passed strict inspection to eliminate the hidden dangers of false welding and welding leakage. To ensures long-term stable operation of the entire machine, effectively reducing precision lost and extending the machine’s lifetime.
2.XYZ axes are equipped with high-speed rack and pinion transmission and Z axis is equipped a high-precision ball screw, this design could ensures precise positioning while increasing machine move speed, balancing machining accuracy and production efficiency.
3. All XYZ axes are equipped with Taiwan square rails, their excellent guiding performance effectively suppresses vibration during high-speed movement, ensuring smooth moving and guaranteeing high-quality machining surfaces.
4. High-efficiency power drive: The XYZ axes may be driven by high-speed linear motors, with a maximum rapid feed rate of 60m/min and a maximum acceleration of over 5m/sec². This direct power transmission and fast response speed can improve processing efficiency..
5. GM series panel cutting machine be specifical designed for sandwich panel processing, its structural design precisely addresses the core pain points of this type of panel processing. Its hollow vacuum table not only secures the sandwich panels with strong suction—preventing displacement caused by thin, easily deformed panels during processing and ensuring cutting accuracy—but more importantly, it provides a direct waste channel, allowing debris and dust generated during processing to fall directly into a collection device below, eliminating the need for frequent manual cleaning of the tabletop. This reduces the impact of waste accumulation on processing accuracy and significantly reduces the cleaning workload for operators, ensuring a smoother processing flow.
6. All electrical parts are choose top brands and are designed and manufactured with CE standards, ensuring the safety, reliability, and compliance of the equipment’s electrical system from the beginning.
7. Before delivery, each machine will do a 24 hour continuous moveing test to fully verify operational stability and processing performance. Customers can begin production directly after receive the machine without any additional commissioning, to saving time.
8. The whole machine with 18 months warranty, and the Chencan team provides lifetime technical support. From installation to maintenance, we provide professional support throughout the entire process, eliminating any worries about production.
Composite Board Processing Center Industry & Materials:
| Industry |
Material |
| Vehicle Body Manufacturing |
Sandwitch Panel |
| Transportation Industry |
Wood, MDF, PVC, Foam, MDF, Plastic |
| Constructioin Industry |
Composites materials |
Technical Parameters of Composite Board Processing Center:
| Model |
GM3010AH |
| Table Size1 |
3000*10000mm |
| Working Area (mm) |
X:3000 Y:10000 Z:350mm |
| Spindle Type |
Electronic ATC Spindle |
| Spindle Power |
9Kw ATC Spindle |
| Spindle Speed |
24000rpm/min |
| Spindle Cone |
ISO |
| Max Tool Diameter |
Φ32mm |
| Max Tool Weight |
5KGS |
| Cutting Saw |
No, as optional |
| Control CNC |
Taiwan System Control System |
| Drive System |
Japan YASKAWA Servo System |
| Tool Magazine Type |
Carosel tool magazine |
| Tool Magazine Capacity |
8 pcs |
| Drive Type |
XY: High speed rack and pinion
Z: High precision ball screws |
| Work Model |
AC Servo Drive |
| Max Working Speed X/Y/Z(mm) |
35/35/15 |
| Max Rapid Speed X/Y/Z(m/min) |
60/60/30 |
| Work Table type |
Flate Type Vacuum Table |
| Vacuum pump |
5.5Kw Vacuum Pump * 4 |
| Air Pressure (kgf/cm2） |
≥0.06(kgf/cm2） |
| Total Power (KVA) |
55(KVA) |
| Gross Weight (T) |
10T |
| Layout Szie (mm) W*L*H |
3700*16000*200mm |
