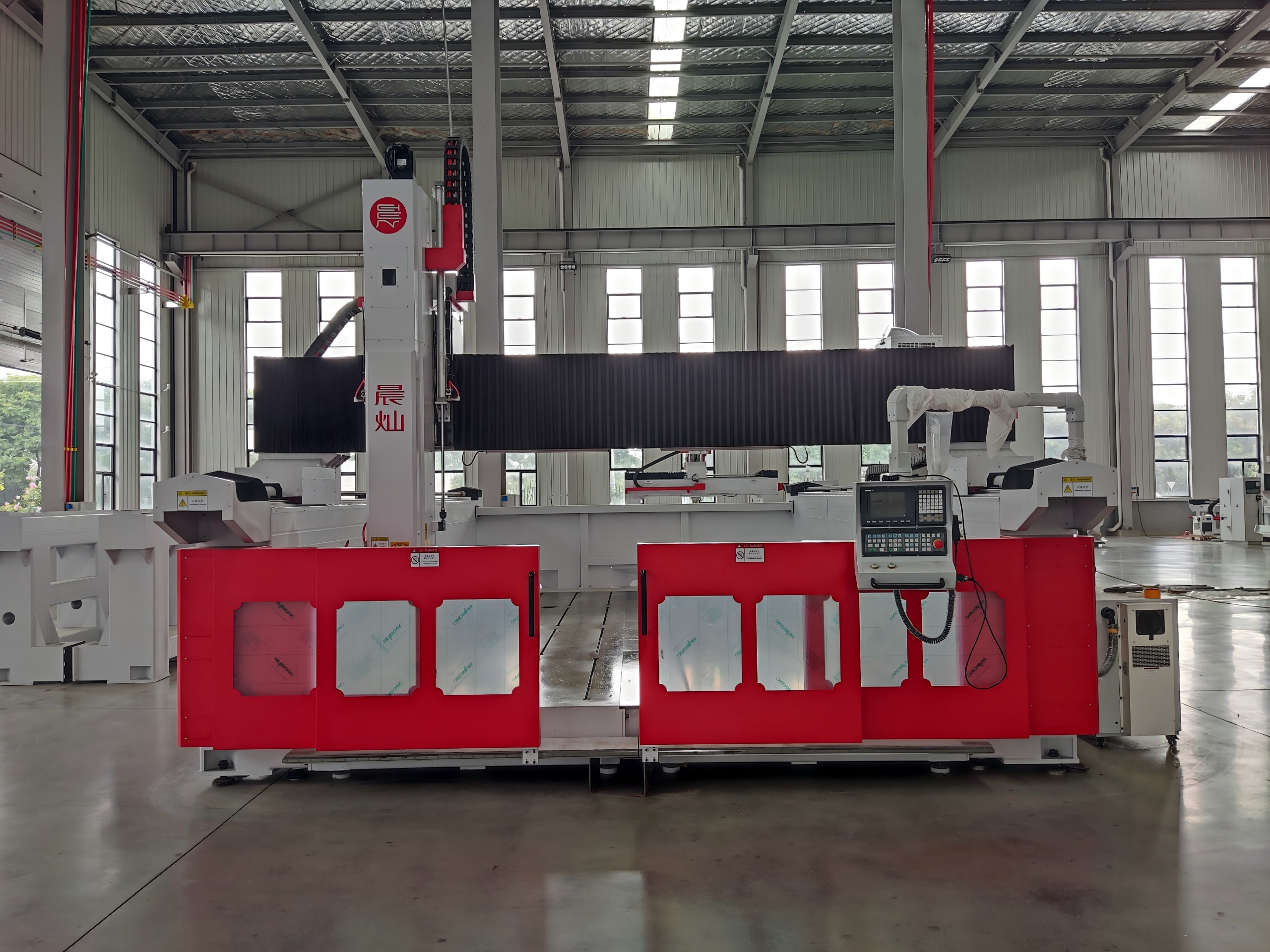

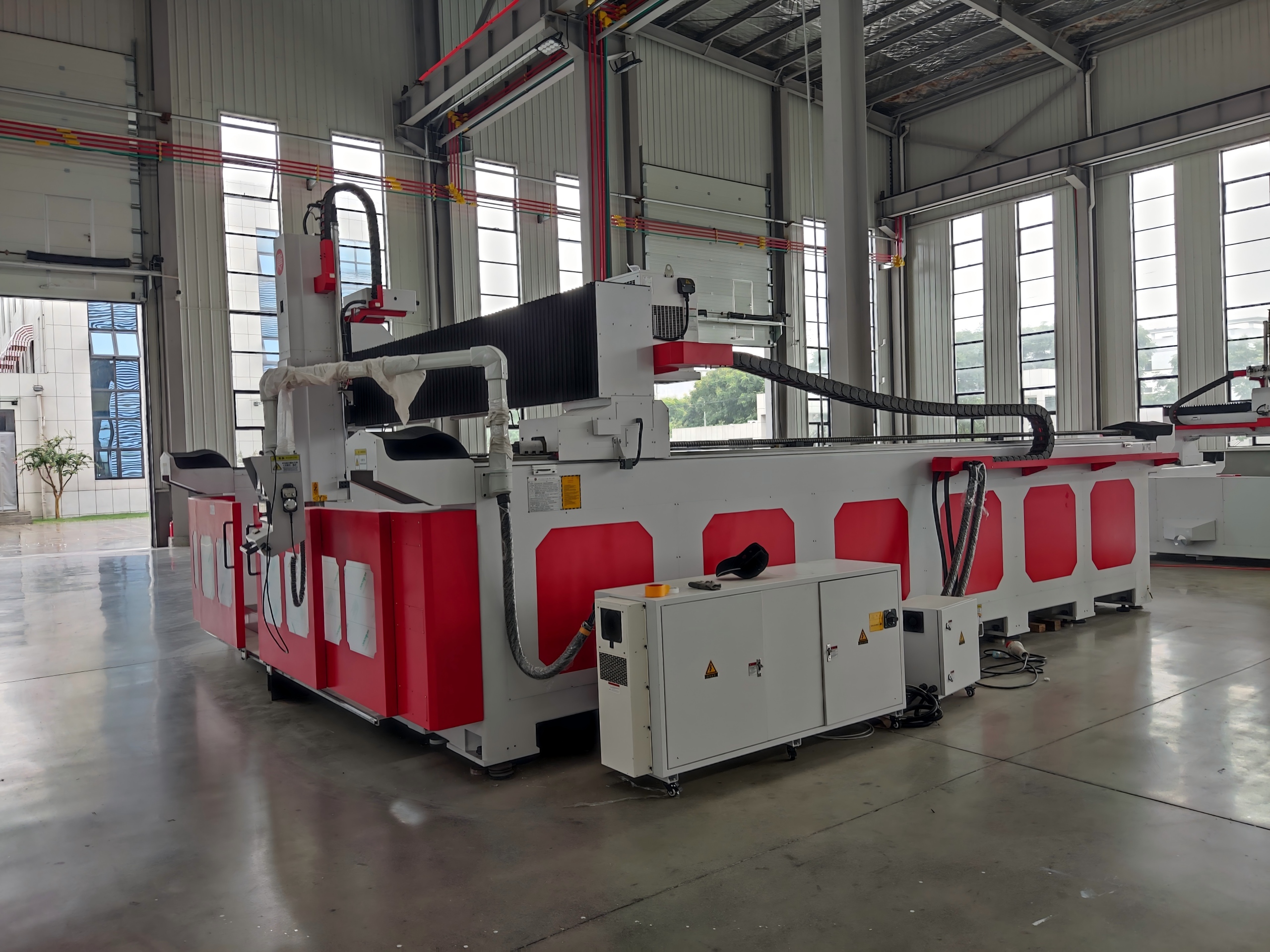

The SF series high quality mold CNC milling machine for sand and EPS foam mould making is special designed for various hard pattern/mold and sculpture processing. Its three core advantages address industry processing challenges, making it a reliable partner in the casting pattern and mold industry.
Video Show of High Quality Mold CNC Milling Machine for Sand and EPS Foam Mould Making:
Core Advantages of High Quality Mold CNC Milling Machine for Sand and EPS Foam Mould Making:
1. High working speed, significantly reducing processing time.
2. Exceptionally poweful torque, enabling easy cutting of hard molds containing hidden steel nails without requiring additional processing, thus avoiding the stalling and damage associated with traditional equipment.
3. Furthermore, its highly rigid structure and precision transmission system ensure long-term machining stability, effectively guaranteeing mold accuracy and reducing the risk of rework.
Its three core advantages address industry processing challenges, this series of equipment is widely used in casting mold processing, providing strong support for efficient production in the industry.
Features of Hot Seller Pattern CNC Engraving Machine for Wood Ship Mold Making :
1. The machine body adopts thick-walled sqaure tube welding technology, all weld has passed strict inspection to eliminate the hidden dangers of false welding and welding leakage. To ensures long-term stable operation of the entire machine, effectively reducing precision lost and extending the machine’s lifetime.
2. All XYZ axes are equipped with Taiwan square rails, their excellent guiding performance effectively suppresses vibration during high-speed movement, ensuring smooth moving and guaranteeing high-quality machining surfaces.
3. Key mechanical components use high-temperature tempering, which not only reduces material hardness but also completely eliminates th internal stress. This process highly improves component stability, ensuring the machine maintains high-precision over the long term.
4. During the installation and commissioning phase, high-end testing equipment such as laser levels, laser alignment equipment, marble squares, test bar, and laser interferometers are used, and standardized procedures are strictly followed. This ensures that each machine with best performs before shipment.
5. The whole machine with 18 months warranty, and the Chencan team provides lifetime technical support. From installation to maintenance, we provide professional support throughout the entire process, eliminating any worries about production.

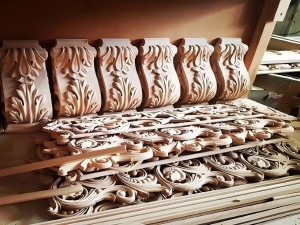

Hot Seller Pattern CNC Engraving Machine for Wood Ship Mold Making Industry & Materials:
Technical Parameters of Mold and Sculpture Making:
| Model | SF4060 |
| Table Size | 6000*4000mm |
| Working Area (mm) | X:6000 Y:4000 Z:1500 |
| Spindle Type | Powerful Mechanical ATC Spindle |
| Spindle Motor Power | 7.5Kw big power spindle motor |
| Spindle Speed | 10000rpm/min |
| Spindle Cone | BT40 |
| Max Tool Diameter | Φ32mm |
| Max Tool Weight | 5KGS |
| Control CNC | HNC System |
| Drive System | HNC servo motor and drivers |
| Drive Type | XYZ: High precision ball screws |
| Pront Protective Door | Yes |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 30/30/15 |
| Max Rapid Speed X/Y/Z(m/min) | 55/55/20 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.07/0.05/0.04 |
| Repeatability X/Y/Z(mm/m) | 0.05/0.03/0.025 |
| Work Table type | Iron Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.06 |
| Total Power (KVA) | 20 |
| Gross Weight (T) | 24 |
| Layout Szie (mm) | 9000*6800*5300mm |
Optional Configuration of Mold and Sculpture Making:
| Spindle | BT50 Mechanical Spindle |
| Spindle Motor | 11Kw spindle servo motor |
| Work Table | Aluminum Table, Vacuum Table, Cast Iron Table |
| Around Protection | Roof |
| Dust Suction System | Grids+hood |
| Vision Cameras | 2 cameras, 4 cameras |
| Tool Library | Linear type tool libray |
| 4 Axis Axis | Rotary Axis |

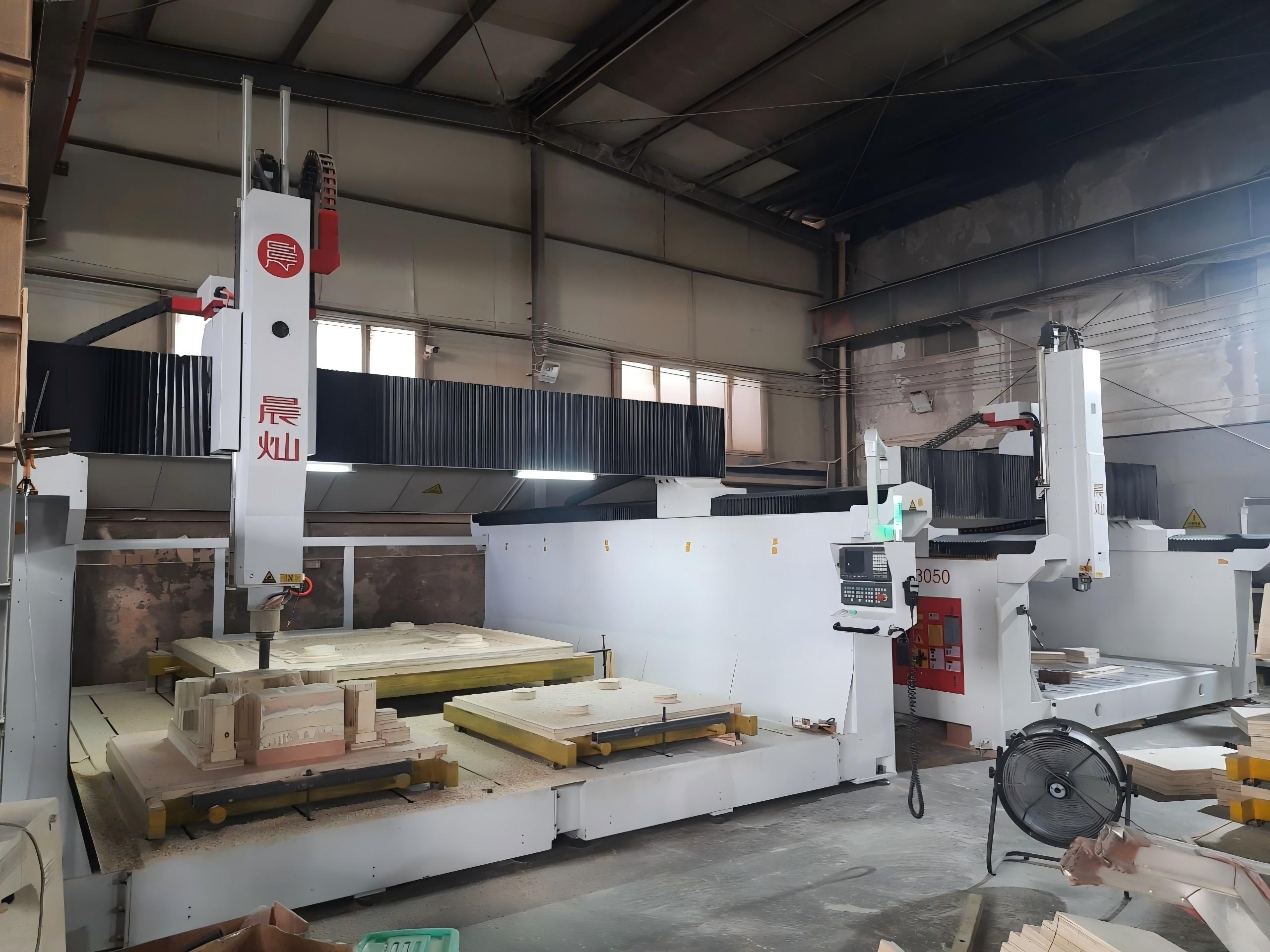

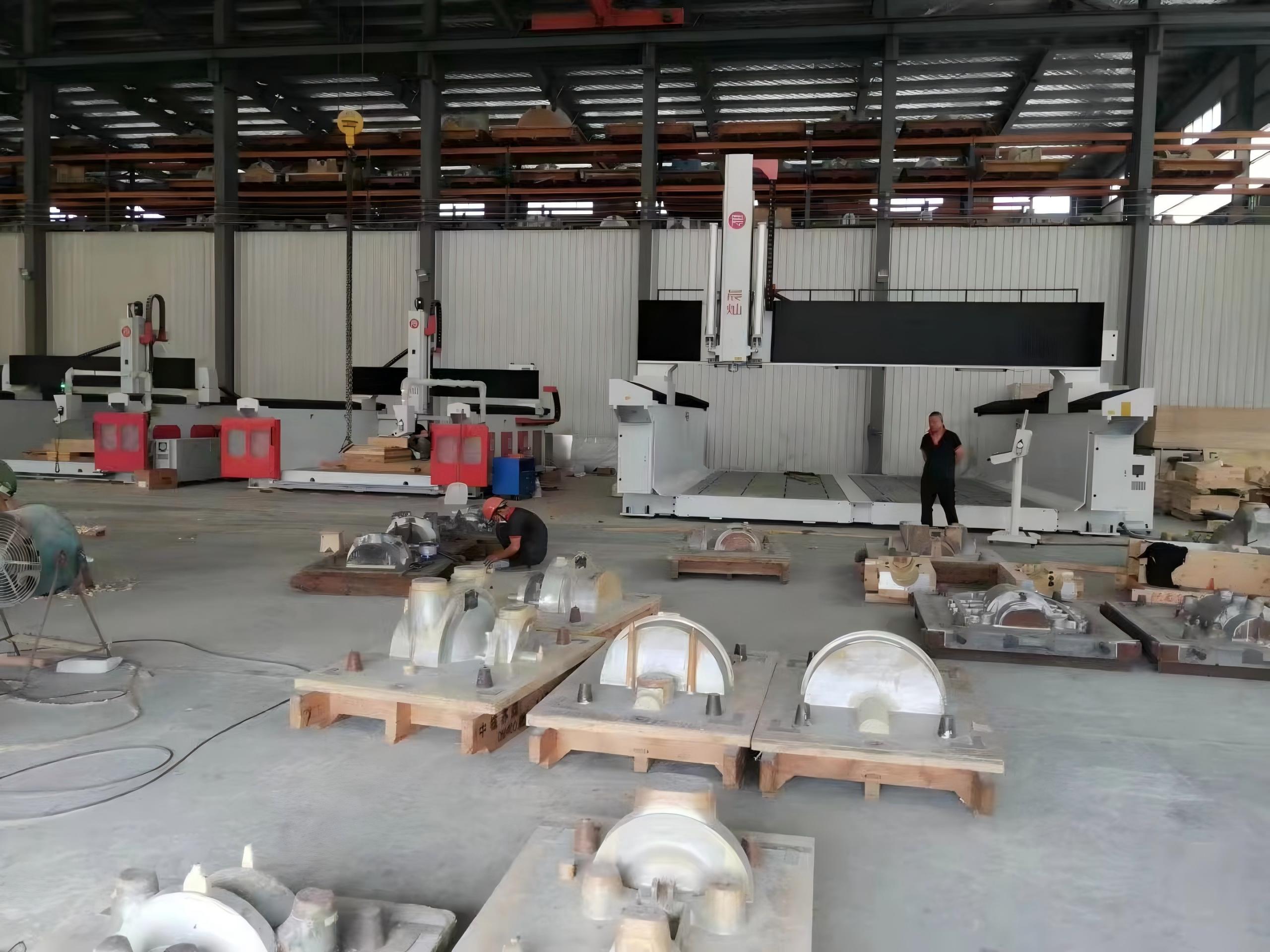

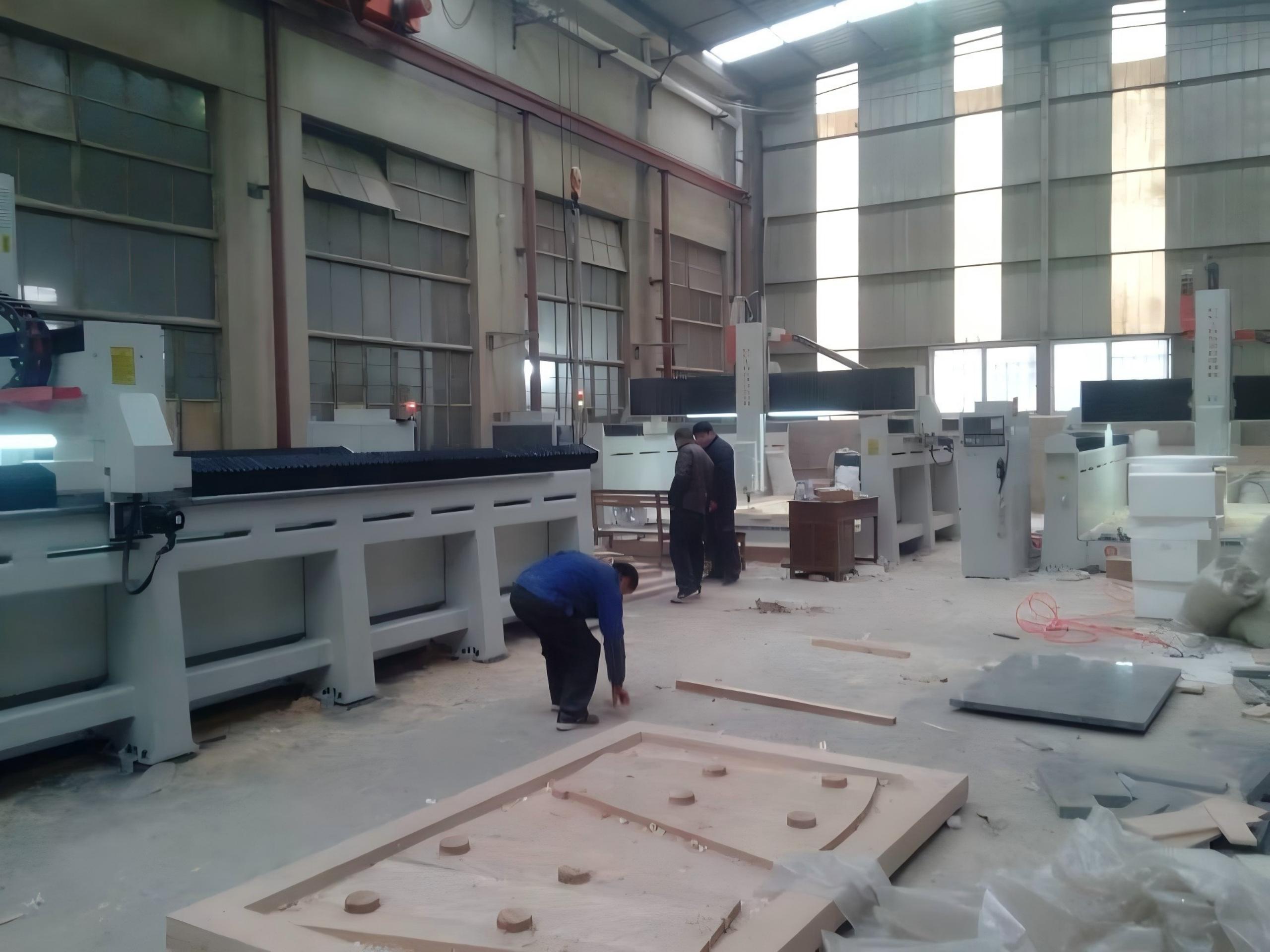

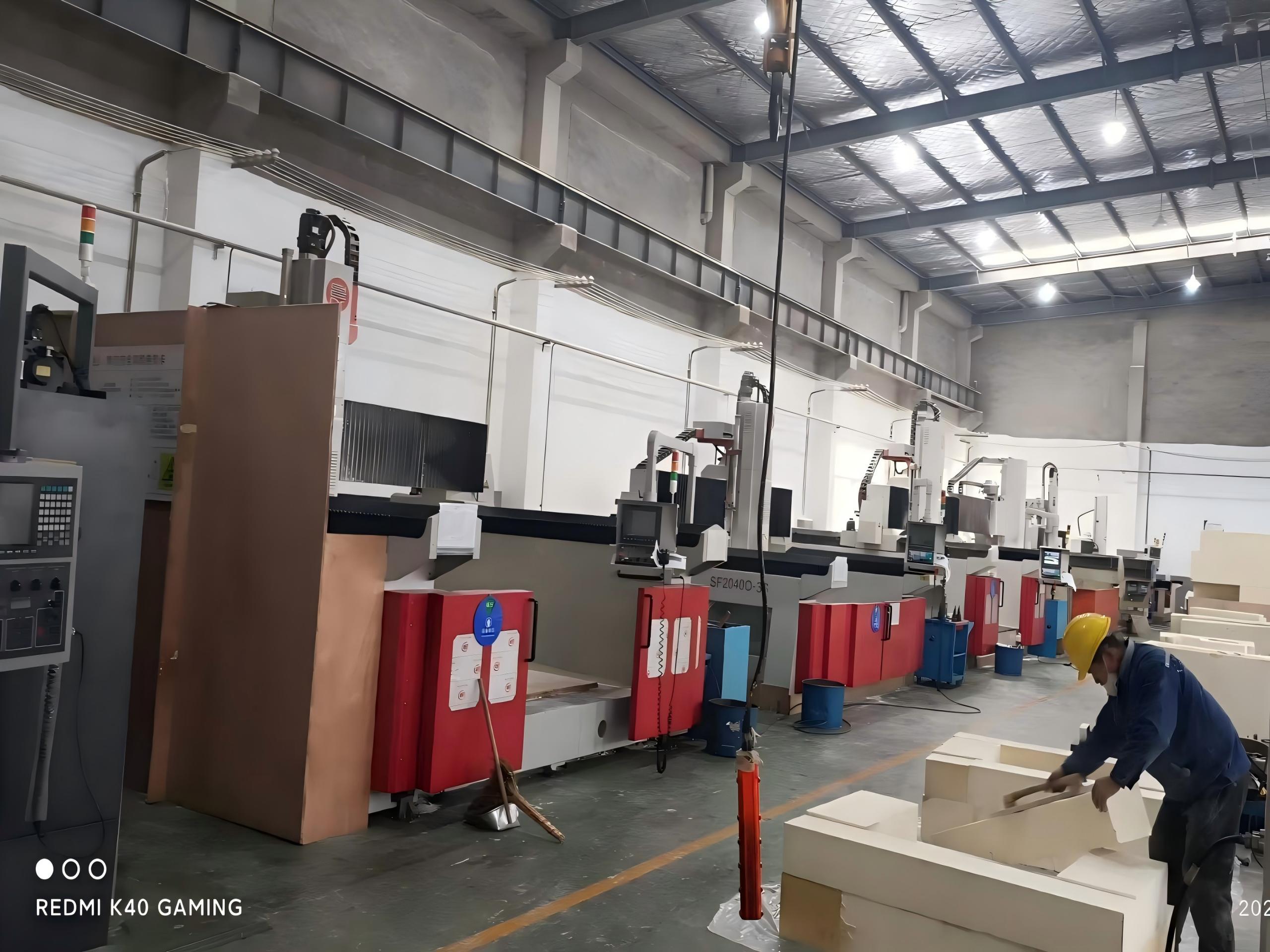

High Quality Mold CNC Milling Machine for Sand and EPS Foam Mould Making project:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
High quality mold CNC milling machine for sand and EPS foam mould making is a high-precision and high-efficiency machine. Regular maintenance is important to keep its accuracy and extend its lifetime.
1. Dust Cleaning: Daily clean the work table after one day work, keep the appearance of thesurface of the pattern cnc router machine, and prevent dust and debris from entering the equipment.
2. Lubrication Maintenance: pattern cnc router machine adopt auto lubricate system, which will lubricate the various parts of the machine according to the requirements automatically, but need to check the oil level in pump regularly.
3. Cooling System Maintenance: pattern cnc router machine adopt water chiller, the cooling system must be used during the process to ensure the heat dissipation of the spindle and tool, reduce tool wear and extend the life of the equipment.
4. Regular Calibration: Calibrate the machine regularly to ensure the processing accuracy and stability of the pattern cnc router machine.
5. Timely Maintenance: When machine collsion or problems are found, pleae contact the professional maintenance personnel in time for repair to avoid the problem from affecting the normal use of the machine.
In the end, pattern cnc router machine require regular maintenance and attention to keep the machine in good condition and improve its accuracy, efficiency and lifetime.
FAQ for High Quality Mold CNC Milling Machine for Sand and EPS Foam Mould Making
Q1. What are the core performance characteristics of the SM mold machining center?
The core characteristics are: “heavy-load stability, strong cutting performance, high speed, and high precision.”
Q2. In which industries does the SM mold machining center currently have advantages?
It break through the limitations of multi-material machining, demonstrating irreplaceable advantages, particularly in the lightweighting of automotive chassis and railway transportation applications.
Q3. What materials and workpiece types does SM mold machining center process?
With a wide range of materials, such as cast steel, high-strength steel, aluminum alloys, and can reliably process both high-hardness and light metals.
Q4. What payment methods are supported?
We offer a variety of mainstream payment methods, which can be flexibly selected based on the cooperation practices of both parties, such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Alipay.
Q5. What if cannot find a suitable machines?
Don’t hesitate to contact us, Chencan professional technical team will recommend you the right machine according to your processing requirements.
