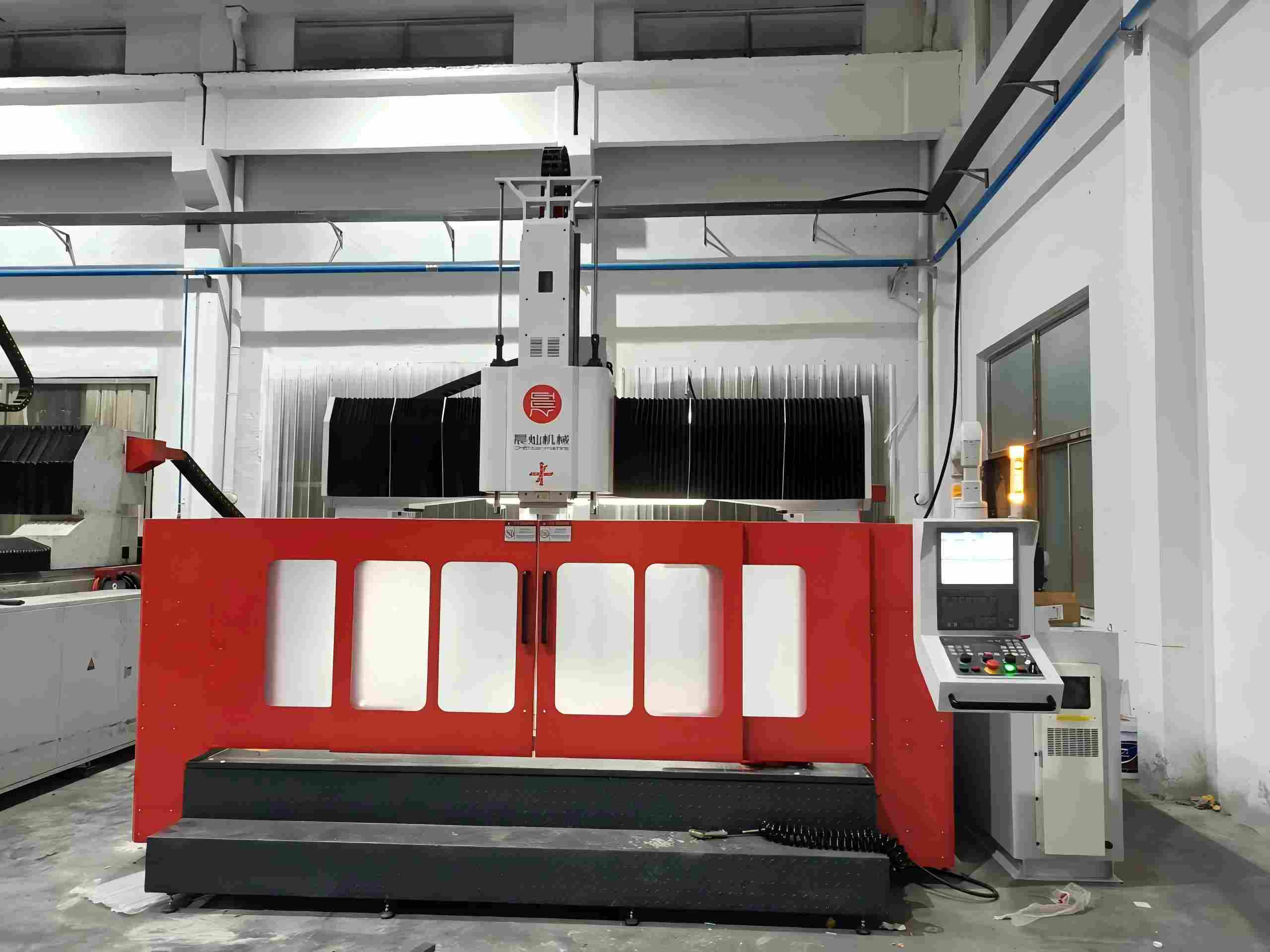

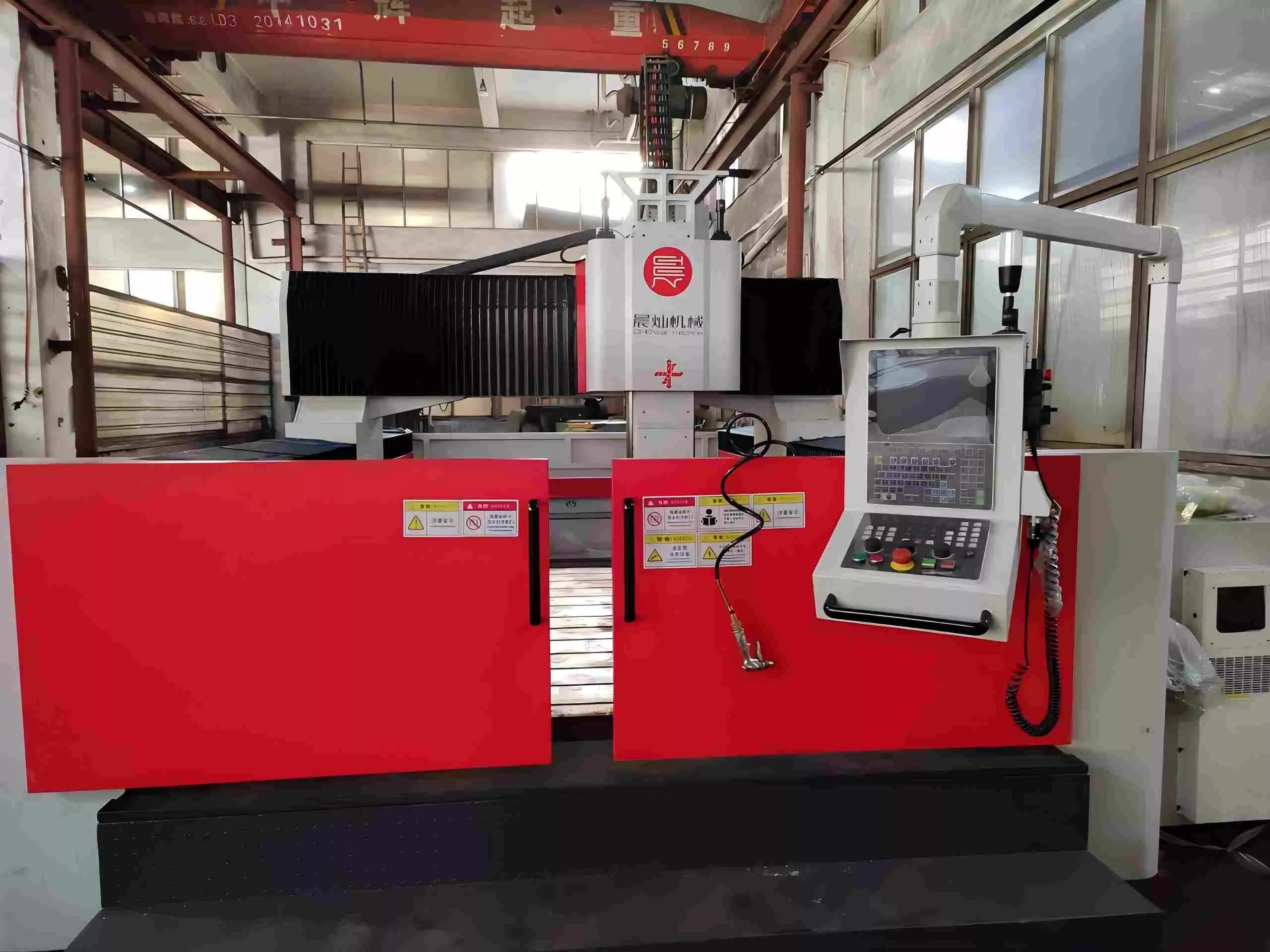

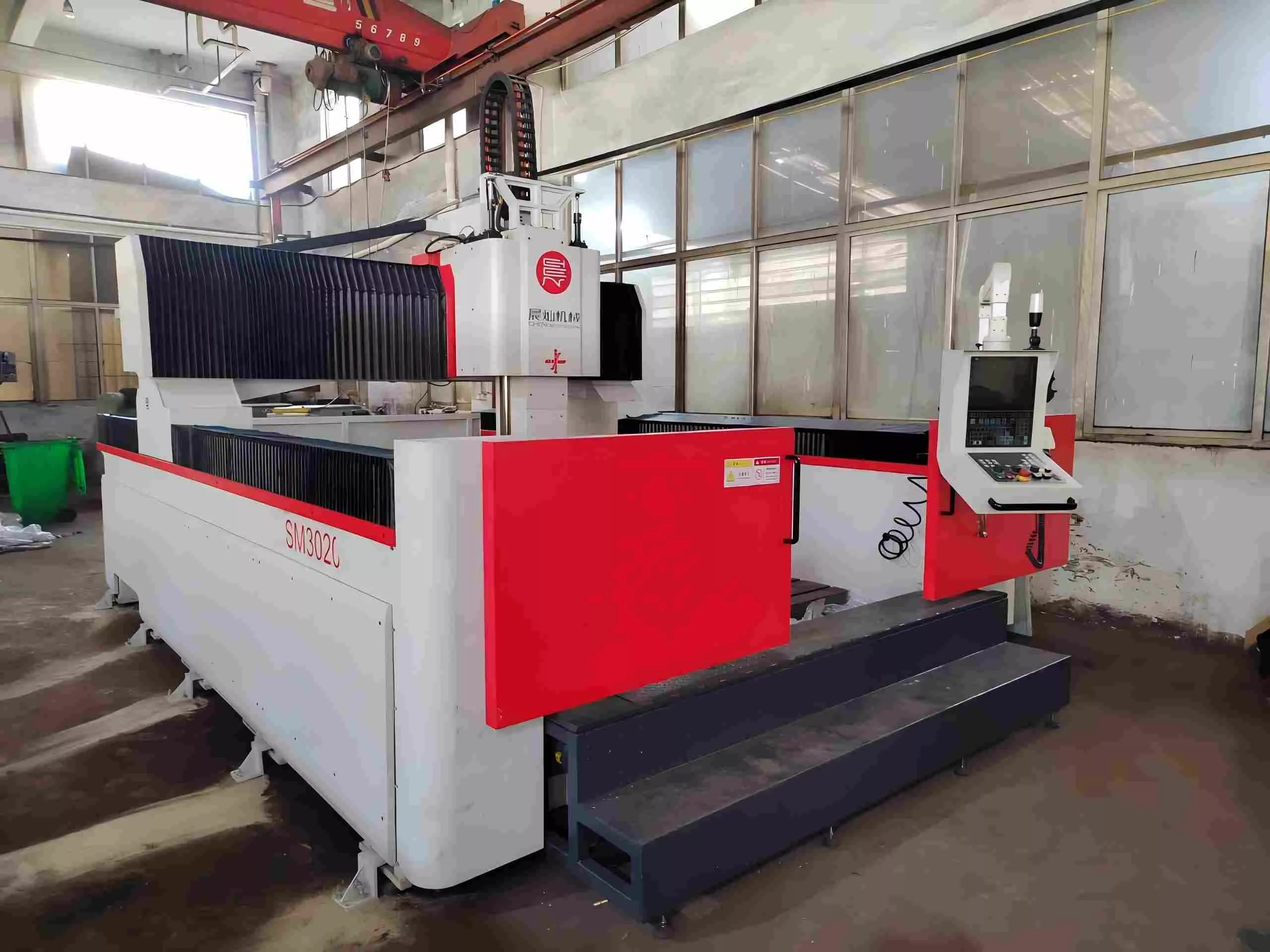

SM3020 New Soft Metal CNC Mold Milling Machine for Pattern Making

Video Show of New Soft Metal CNC Mold Milling Machine for Pattern Making:

Core Advantages of New Soft Metal CNC Mold Milling Machine for Pattern Making :

In the field of lightweight processing of automobile chassis, heavy duty gantry milling machine for mold mkaing can efficiently process complex structural parts such as aluminum alloy chassis frames and suspension systems, taking into account the speed and precision of lightweight material processing; in the field of railway transit, it can be competent for heavy cutting processing of metal molds such as train body frames and key connecting parts, meeting the stable forming needs of large workpieces, and providing core support for efficient production in the two major fields.

Features of New Soft Metal CNC Mold Milling Machine for Pattern Making :

1. The machine body utilizes a seamless welding process and a high-density cast worktable, annealed at 800°C to eliminate internal stress and ensure a deformation rate of ≤0.001% after long-term use. The base and column utilize a mountain-shaped rib-reinforced design to minimize force flow. Combined with an extra-wide base and widened column bottom span, the machine’s center of gravity is lowered to an optimal stable height, resulting in a 40% increase in torsional strength compared to traditional structures.

2. Imported heavy-duty ball guides are standard on the X/Y/Z axes. The track surfaces undergo high-frequency quenching, resulting in a friction coefficient as low as 0.008 while ensuring rigid support. The lead screw utilizes a C3-grade ground nut drive mechanism with a pre-tension of 15% of the screw’s rated dynamic load, completely eliminating backlash. High-quality couplings ensure motor-screw coaxiality error of ≤0.002mm, resulting in a transmission efficiency exceeding 98%.

3. Stable Spindle Assemble Design: The contact length between the spindle and the plate is optimized to a 1:3 golden ratio, providing balanced support for the entire stroke. Adopt oil cooling system, with constant-temperature coolant circulation controlling internal spindle temperature fluctuations to within ±1°C, effectively minimizing accuracy deviations caused by thermal expansion.

4. Auto Lubrication and Maintenance Warning: Auto lubrication system, coupled with an on-board lubrication pump, ensures uniform lubrication of key components such as the guide rails and lead screw. Oil level and pressure monitoring provides automatic oil shortage alarms.

5. Flexible Chip Removal and Cleaning Design: The machine comes standard with a double-helical chip conveyor and a lifting chip conveyor (extended for heavy-duty operation), achieving a chip removal speed of 3m/min and handling chips up to 50mm in diameter.

6. The spindle nose is equipped with an air curtain dust control and a central air blower, with air pressure reaching 0.6MPa, effectively preventing chips and coolant from entering the spindle, extending bearing life by over 30%.

7. Deeply Compatible CNC System: Equipped with the high-end HNC 818 CNC system, it supports AI toolpath optimization and 3D simulation, enabling proactive detection of vibration risks during heavy cutting and automatically adjusting feed rates. The system also includes a built-in MES interface, enabling intelligent management such as uploading machining parameters and tracking order progress, making it ideal for modern production workshops.

Heavy duty gantry milling machine for mold making Industry & Materials:

Technical Parameters of New Soft Metal CNC Mold Milling Machine for Pattern Making:

Optional Configuration of CNC Mould Milling Machine for Mold  Making:

Heavy Duty CNC Mould Milling Machine for Mold Making Project :

New Soft Metal CNC Mold Milling Machine for Pattern Making is a high-precision and high-efficiency machine. Regular maintenance is important to keep its accuracy and extend its lifetime.

1. Dust Cleaning: Daily clean the work table after one day work, keep the appearance of thesurface of the pattern cnc router machine, and prevent dust and debris from entering the equipment.

2. Parts Maintenance: Regularly check the various parts of the surface of the pattern cnc router machine, including guide rails, transmission systems, spindles, collet, etc., to ensure that they operate normally, and find and solve problems in time.

3. Lubrication Maintenance: pattern cnc router machine adopt auto lubricate system, which will lubricate the various parts of the machine according to the requirements automatically, but need to check the oil level in pump regularly.

4. Temperature Control: Regularly check the working temperature of the pattern cnc router machine to avoid high temperature affecting the machine’s operation, and handle abnormal temperature problems in time.

5. Cooling System Maintenance: pattern cnc router machine adopt water chiller, the cooling system must be used during the process to ensure the heat dissipation of the spindle and tool, reduce tool wear and extend the life of the equipment.

6. Regular Calibration: Calibrate the machine regularly to ensure the processing accuracy and stability of the pattern cnc router machine.

7. Safety Protection: Ensure the safety protection around the machine are good to ensure the operator safety and avoid accidents.

8. Timely Maintenance: When machine collsion or problems are found, pleae contact the professional maintenance personnel in time for repair to avoid the problem from affecting the normal use of the machine.

In the end, pattern cnc router machine require regular maintenance and attention to keep the machine in good condition and improve its accuracy, efficiency and lifetime.
