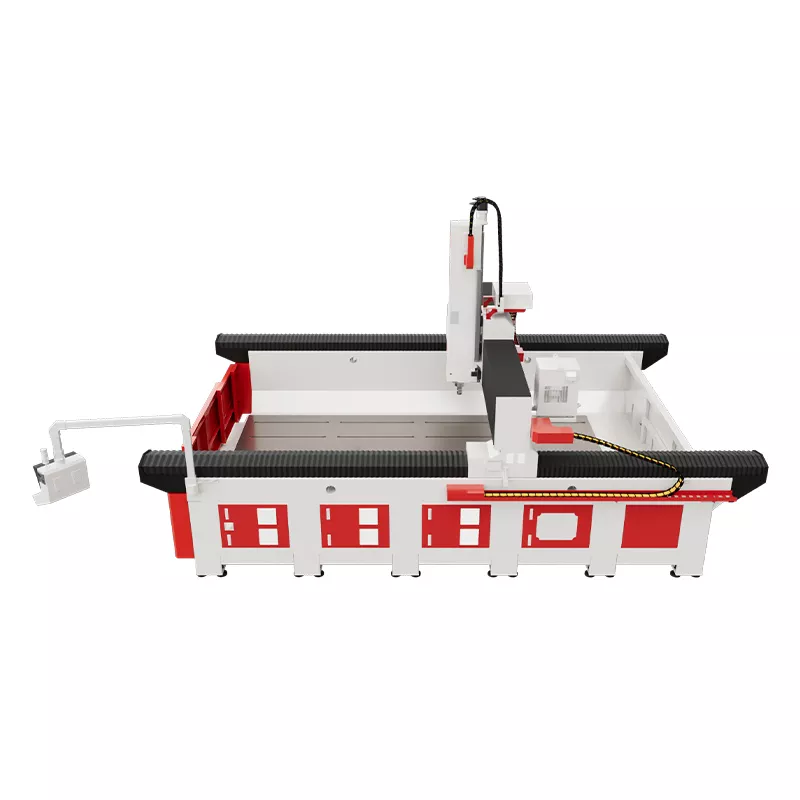

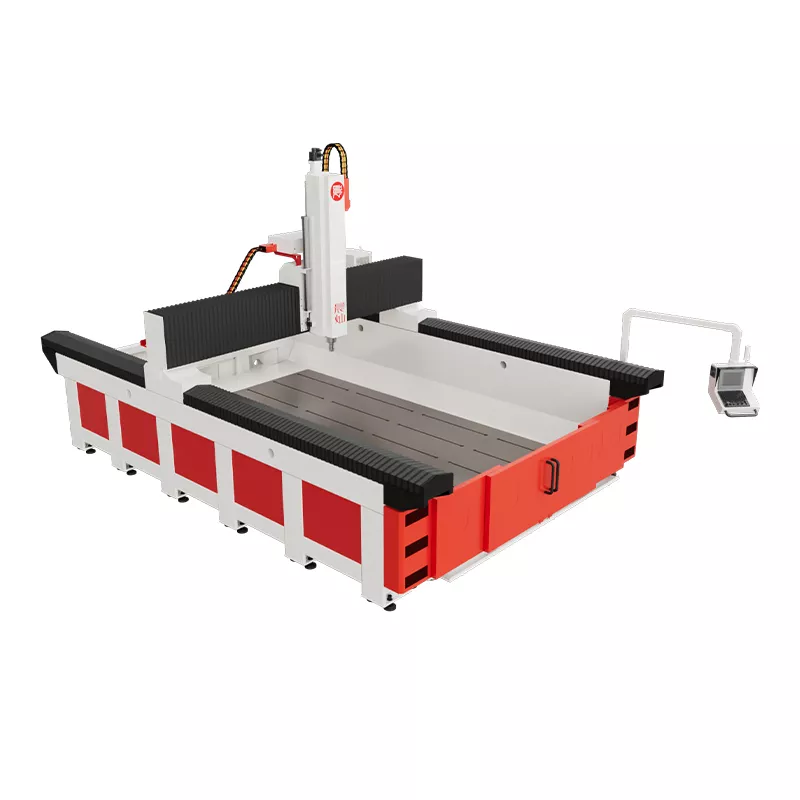

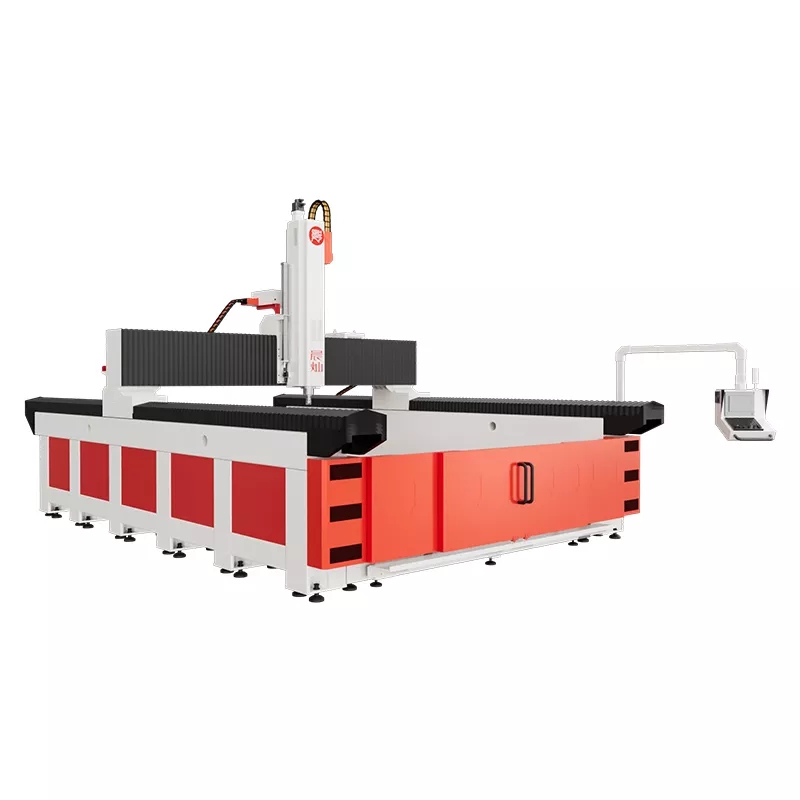

The SF series high-end manufacturing wood mould CNC router for mold processing industry is special designed for various hard pattern/mold and sculpture processing. Its three core advantages address industry processing challenges, making it a reliable partner in the casting pattern and mold industry.
Video Show of high-end manufacturing wood mould CNC router for mold processing industry:
Core Advantages of high-end manufacturing wood mould CNC router for mold processing industry :
1. High working speed, significantly reducing processing time.
2. Exceptionally poweful torque, enabling easy cutting of hard molds containing hidden steel nails without requiring additional processing, thus avoiding the stalling and damage associated with traditional equipment.
3. Furthermore, its highly rigid structure and precision transmission system ensure long-term machining stability, effectively guaranteeing mold accuracy and reducing the risk of rework.
Its three core advantages address industry processing challenges, this series of equipment is widely used in casting mold processing, providing strong support for efficient production in the industry.
Features of high speed cnc router machine for pattern making :
1. The machine body adopts thick-walled sqaure tube welding technology, all weld has passed strict inspection to eliminate the hidden dangers of false welding and welding leakage. To ensures long-term stable operation of the entire machine, effectively reducing precision lost and extending the machine’s lifetime.
2.All XYZ axes are equipped with a high-precision ball screw, this unique drive design ensures precise positioning while increasing machine move speed, balancing machining accuracy and production efficiency.
3. Key mechanical components use high-temperature tempering, which not only reduces material hardness but also completely eliminates th internal stress. This process highly improves component stability, ensuring the machine maintains high-precision over the long term.
4. All electrical parts are choose top brands and are designed and manufactured with CE standards, ensuring the safety, reliability, and compliance of the equipment’s electrical system from the beginning.
5. During the installation and commissioning phase, high-end testing equipment such as laser levels, laser alignment equipment, marble squares, test bar, and laser interferometers are used, and standardized procedures are strictly followed. This ensures that each machine with best performs before shipment.
6. Before delivery, each machine will do a 24-48 hour continuous moveing test to fully verify operational stability and processing performance. Customers can begin production directly after receive the machine without any additional commissioning, to saving time.
7. The whole machine with 18 months warranty, and the Chencan team provides lifetime technical support. From installation to maintenance, we provide professional support throughout the entire process, eliminating any worries about production.
High-end Manufacturing Wood Mould CNC Router Industry & Materials:
Technical Parameters of Mold and Sculpture Making:
| Model | SF3050 |
| Table Size | 3000*5000mm |
| Working Area (mm) | X:5000 Y:3000 Z:1000 |
| Spindle Type | Powerful Mechanical ATC Spindle |
| Spindle Motor Power | 7.5Kw big power spindle motor |
| Spindle Speed | 10000rpm/min |
| Spindle Cone | BT40 |
| Max Tool Diameter | Φ32mm |
| Max Tool Weight | 5KGS |
| Control CNC | HNC System |
| Drive System | HNC servo motor and drivers |
| Drive Type | XYZ: High precision ball screws |
| Pront Protective Door | Yes |
| Work Model | AC Servo Drive |
| Max Working Speed X/Y/Z(mm) | 30/30/15 |
| Max Rapid Speed X/Y/Z(m/min) | 55/55/20 |
| Positioning Accuracy X/Y/Z(mm/m) | 0.07/0.05/0.04 |
| Repeatability X/Y/Z(mm/m) | 0.05/0.03/0.025 |
| Work Table type | Iron Table with T slot |
| Air Pressure (kgf/cm2） | ≥0.06 |
| Total Power (KVA) | 20 |
| Gross Weight (T) | 12.5 |
| Layout Szie (mm) | 7000*4800*4050mm |
Optional Configuration of Mold and Sculpture Making:
| Spindle | BT50 Mechanical Spindle |
| Spindle Motor | 11Kw spindle servo motor |
| Work Table | Aluminum Table, Vacuum Table, Cast Iron Table |
| Around Protection | Roof |
| Dust Suction System | Grids+hood |
| Vision Cameras | 2 cameras, 4 cameras |
| Tool Library | Linear type tool libray |
| 4 Axis Axis | Rotary Axis |
High-end Manufacturing Wood Mould CNC Router for Mold Processing Industry project:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
High-end Manufacturing Wood Mould CNC Router for Mold Processing Industry is a high-precision and high-efficiency machine. Regular maintenance is important to keep its accuracy and extend its lifetime.
1. Dust Cleaning: Daily clean the work table after one day work, keep the appearance of thesurface of the pattern cnc router machine, and prevent dust and debris from entering the equipment.
2. Parts Maintenance: Regularly check the various parts of the surface of the pattern cnc router machine, including guide rails, transmission systems, spindles, collet, etc., to ensure that they operate normally, and find and solve problems in time.
3. Cooling System Maintenance: pattern cnc router machine adopt water chiller, the cooling system must be used during the process to ensure the heat dissipation of the spindle and tool, reduce tool wear and extend the life of the equipment.
4. Regular Calibration: Calibrate the machine regularly to ensure the processing accuracy and stability of the pattern cnc router machine.
5. Safety Protection: Ensure the safety protection around the machine are good to ensure the operator safety and avoid accidents.
6. Timely Maintenance: When machine collsion or problems are found, pleae contact the professional maintenance personnel in time for repair to avoid the problem from affecting the normal use of the machine.
In the end, pattern cnc router machine require regular maintenance and attention to keep the machine in good condition and improve its accuracy, efficiency and lifetime.
FAQ for High-end Manufacturing Wood Mould CNC Router for Mold Processing Industry
Q1. In which industries does the SM mold machining center currently have advantages?
It break through the limitations of multi-material machining, demonstrating irreplaceable advantages, particularly in the lightweighting of automotive chassis and railway transportation applications.
Q2. What materials and workpiece types does SM mold machining center process?
With a wide range of materials, such as cast steel, high-strength steel, aluminum alloys, and can reliably process both high-hardness and light metals.
Q3. How adaptable of SM mold machining center?
From small, precision components like axle boxes to long structural parts like body beams, it can efficiently process all, meeting the production needs of diverse scenarios.No need frequent equipment changes.
Q4. What value can SM mold machining center bring to the industry?
We primarily focus on high-end manufacturing, providing reliable processing support for key industries, such as automotive chassis manufacturing and rail transit equipment manufacturing.
Q5. What payment methods are supported?
We offer a variety of mainstream payment methods, which can be flexibly selected based on the cooperation practices of both parties, such as Telegraphic Transfer (T/T), Letter of Credit (L/C), and Alipay.
Q6. What trade methods are available?
We cover a variety of international trade terms to meet different logistics and liability requirements, such as FOB, CIF (Cost, Insurance, and Freight), FCA, and DDU. The final trade method can be determined through negotiation with us based on requirements such as cargo transportation arrangements and customs clearance responsibility division.
